7. Caves

 Location and types of caves

Bermuda with its networks of caves is typical of the many regions around the world where limestone is the dominant bedrock. In Bermuda, the greatest concentration of caves occurs around Harrington Sound in some of the island’s oldest rocks, of the Walsingham Formation. On the southwestern side of the Sound, near Green Bay, there is an extensive network of submerged caves, which are accessible only to cave divers. On the northeastern side of the Sound, there are the spectacular air-filled “show-caves” such as Leamington Cave, Crystal Cave, Fantasy Cave (Figure 6a) and Admiral’s Cave.

Figure 6a. Fantasy (Wonderland) Cave in the Wilkinson Estate, Hamilton Parish. Note the steeply sloping ceiling and floor typical of Bermuda’s collapse caves. The cave pool (in the middle distance) is a  feature of any  Bermuda cave which extends below sea level.

Bermuda’s caves can be divided into “primary caves” and “secondary collapse caves”, based on how they were formed. Primary caves are the product of tunneling out of limestone by flowing water, whose erosive powers may be attributed to turbulence and/or chemical aggressiveness.  Flooded primary  caves, navigable only by scuba divers, are found in the Green Bay and Red Bay cave systems on the southwestern side of Harrington Sound. Formed by the progressive enlargement of flooded conduits, such caves can ultimately  evolve into chambers of sufficient lateral span that they become vulnerable to collapse.

Collapse caves are, thus, formed when the roofs of laterally expansive primary caves fall in. Collapse caves occupy the space between the fallen debris and the new roof. They have vaulted ceilings, and floors which are buried in large fallen blocks of limestone known as “breakdown” (Figure 6b and 6d).  Some of those which have entrances from the land surface have been fitted with flights of steps and lighting, and developed as “show caves”. (Figure 6a).

Baygrape Cave 001

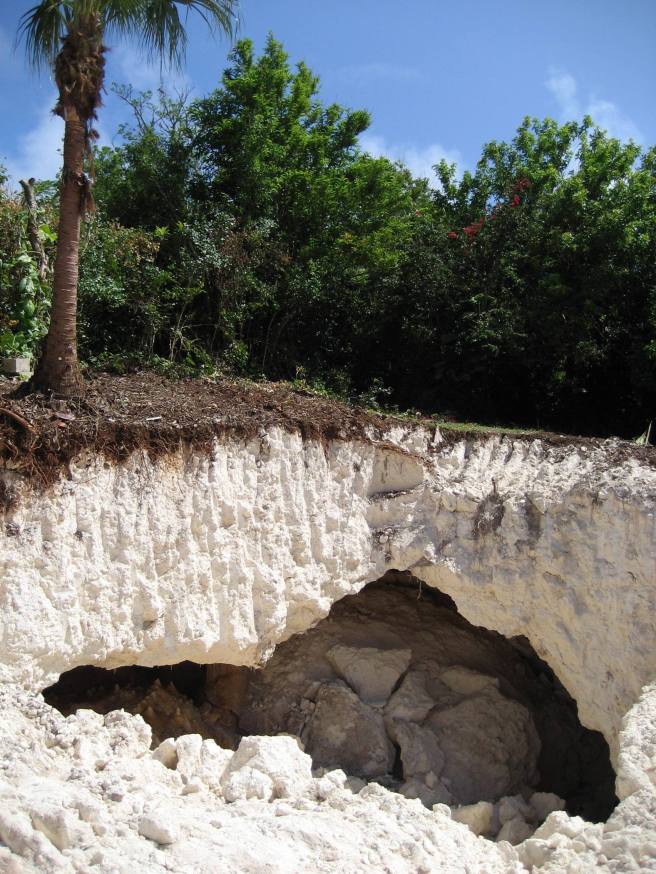

Figure 6b. Cave near Harrington Sound Road, Smith’s Parish. This previously unknown and  inaccessible collapse cave was exposed by an excavator. The fallen blocks , or “breakdown”, inside the cave are the product of natural processes. They illustrate how intermittent collapse of the ceiling and settlement of the blocks into deeper chambers, have contributed to expansion of the cave.

Collapse caves expanded by upward void migration, or stoping, associated with progressive ceiling collapse. Good examples of accessible collapse caves are located on the notheastern side of Harrington Sound, such as Leamington,  Crystal, Fantasy (Wonderland) (Figure 6a) and Admiral’s caves. Exploration of the submerged extension of these caves by cave divers has demonstrated a high degree of connectivity among them (Figure 6c), as well as indirect submarine connections between Harrington Sound and the sea. Such inter-connection between collapse caves suggests control of their distribution by underlying primary caves which themselves were part of a network.

Caves - Walsingham System

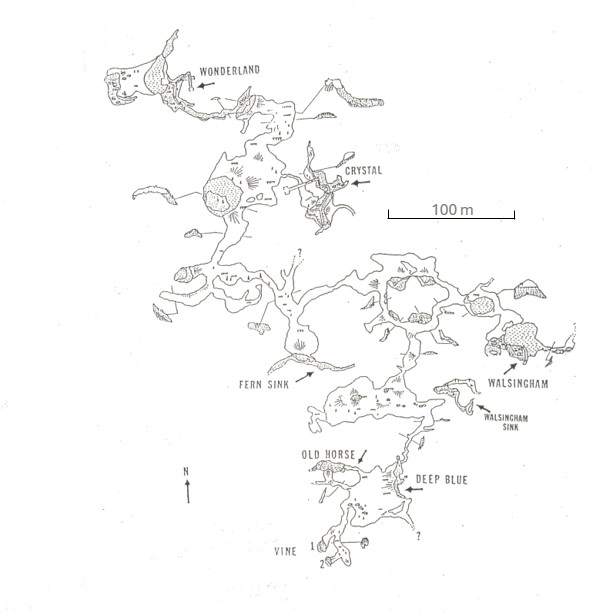

Figure 6c. Map of the cave network on the northeastern side of Harrington Sound in Hamilton Parish. The mapping project, which was undertaken by the Bermuda Cave Diving Association in 1986, was sponsored by the Bermuda Government. It shows the submerged passageways which connect various air-filled  collapse caves. At the northern end of the network are Wonderland Cave (re-named Fantasy Cave) and Crystal Cave. At the southern end is Vine Cave. The submerged passageways which connect these caves are approximately 0.7 km (0.4 miles) long.

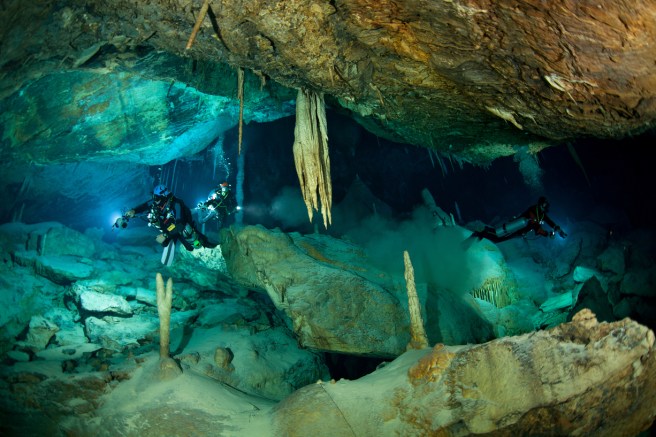

Figure 6d. Submerged Bermuda cave. Note the large blocks of limestone, or breakdown, which have fallen from the ceiling. Photo by Jill Heinerth
Figure 6e. Submerged Bermuda cave. Note the large stalagmite to the left and typical sloping ceiling  to the right.The submerged cave formations (stalactites and stalagmites) must have formed when the cave was air-filled and sea level was lower than it is today. Photo by Jill Heinerth

Oscillating sea levels of the Pleistocene Epoch (Chapter 8) caused ground water to alternately saturate Bermuda’s limestones and then drain away. Caves, correspondingly, varied from partly or completely water-filled to almost completely air-filled. The occurrence of prolonged periods of lower sea level is evident from cave formations, or speleothems, such as stalactites and stalagmites that formed in the air but which are now submerged (Figures 6d and 6e). When sea-level was high and the Bermuda platform was flooded, primary caves had the opportunity to expand laterally through limestone dissolution. When sea-level was low, the buoyant support that had been provided to cave ceilings in completely flooded caves was withdrawn, and they became more vulnerable to collapse. At successive sea level oscillations the cycle was repeated.

The Genesis of Caves

Primary caves are the precursors to secondary collapse caves which are the dominant accessible caves in Bermuda. There are two types of primary caves – vadose and phreatic. The  first is formed by fast flowing turbulent water of underground streams.  Such flowing water when combined with an abrasive “bedload” of sediment will enlarge voids and fissures by mechanical erosion.  Narrow conduits are, thus, widened into tunnels and caves, by the same processes that surface streams carve valleys.  The second type of primary cave – phreatic – is formed within limestone that is saturated with slow-moving  ground water.  Phreatic caves are the product of limestone dissolution (leaching) by chemically aggressive ground water. The cause of such aggressiveness in coastal, or island, aquifers has been attributed to the mixing of fresh ground water (originating as rain) and saline ground water (from the sea). The whole process of coastal phreatic cave formation has been expounded by Mylroie and Carew in their “flank margin” cave model (MY2)  Further discussion of this model can be found later in this chapter.

Primary phreatic caves feature smooth or sponge-like walls and “blind” passageways (leading to dead-ends) which are diagnostic of dissolution in saturated rock by very slow moving ground water i.e. in the phreatic environment.  They formed as “mixing chambers and are not true conduits” (MY4).

In Bermuda, according to Mylroie and Mylroie (MY4), primary caves are scarce. They claimed that rock surfaces showing the effects of phreatic dissolution are “extremely rare”. However, it appears that Mylroie and Mylroie  based this conclusion principally on observations they had made in air-filled caves. Phreatic dissolution features are actually not uncommon, but tend to be limited to the less accessible, fully submerged caves. Examples have been described by Bermudian cave diver, Bruce Williams, on the southwest side of Harrington Sound in the Green Bay system, with its 2 kilometers (1.25 miles) of surveyed passageways, as well as northwest of the Sound in the vicinity of Strawmarket Cave (Figure 6f). Bruce Williams has also reported “key hole” structures, which represent the modification of, initially phreatic (fully submerged), caves by vadose streams. This transition from phreatic to partially air-filled caves can be attributed to the lowering of ground water levels associated with a drop in sea level.

Strawmarket cave edited

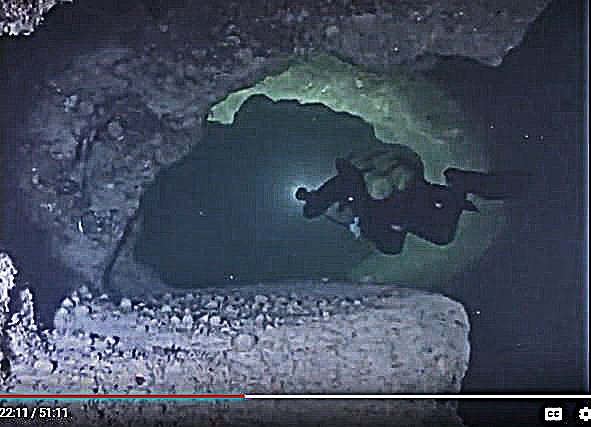

Figure 6f. Cave passageway on northeastern side Harrington Sound.  This frame is from a video shot by the Bermuda Cavers Group within a 500 m (1700 ft) circuit of submerged tunnels/passages  which connect Palm Cave and Strawmarket Cave to the waters of Harrington Sound. The oval shape of the passage and horizontal ledge projecting from the left wall are diagnostic of  primary phreatic dissolution associated with horizontal ground water flow. Also, the absence of fallen breakdown blocks, typical of secondary caves,  is significant   (Video provided by Bruce Williams).

Although primary dissolution features are not as rare as once thought, Bermuda’s accessible caves for the most part can be described as secondary collapse chambers. They do not fit into the phreatic (primary) cave development model created for other limestone islands such as the Bahamas, despite having a similar geology (MY4). Nonetheless, Bermuda’s caves do have counterparts in other parts of the world, such as those of Malta where  Gines and Gines (GI2)  reported that 90% of caves explored are characterized by collapse chambers.

Secondary caves, as found in Bermuda, are the outcome of multiple phases of ceiling collapse. They expand upwards, episodically, until they break-through to the surface, at which point a cave entrance is created (Figure 6g). The progression of cave collapse is determined by planes of weakness in the bedrock created by bedding (stratification) and by fractures. Many caves in Bermuda have steeply sloping ceilings (Figures 6a) which have fallen away along bedding planes that coincided with the sloping slip-faces of ancient dunes.

Cave Formation
Figure 6g. The evolution of primary caves into collapse caves. 1. Primary caves were initially created by phreatic ground-water flow;  2. Primary caves became air-filled when sea level dropped during glacial periods; 3. Following several cycles of enlargement,  primary caves became increasingly vulnerable to collapse at low sea levels when the buoyant support provided by ground water had been removed; 4. Cave collapse created the accessible air-filled secondary caves which we are familiar with today.

The depth range of caves

The lower parts of collapse caves are now largely choked with “breakdown” blocks; so it has not been possible for cave divers to fully explore them and understand their genesis. The maximum depth to which cave divers have been able to penetrate into Bermuda’s cave systems is approximately 24 m (80 ft) below sea level. This contradicts a supposition that large caves formed in the depth range of 30 m to 45 m (90 ft and 150 ft) below sea level, at the contact between  limestone and basalt (volcanic rock)  (MY1, MY3). The dearth of deep caves has been confirmed through drilling into the volcanic rock at numerous locations as well as through inspection of the flanks of the seamount by submersibles and divers (IL1).

Indications are that the major primary caves of Bermuda formed  in the range of approximately 15 m to 25 m (50 ft and 80 ft) below present sea level. It is, however,  unlikely that caves are forming at this level today, while sea level is relatively high and much of the limestone cap is occupied by slow moving chemically stable sea water (Figure 6h). Any developement of voids taking place within the limestone today would within a few metres of the water table, which is close to sea level.

The best opportunity, if not the only opportunity, for large primary caves to form at depth within the limestone deposits of Bermuda was when sea level was approximately 20 m to 30 m lower than today as shown in figure 6i. It was then that the land area of Bermuda had increased in size by more than a factor of ten and a large body of fresh ground water, or a lens, would have accumulated. Hydrological processes would, accordingly,  have operated on an incomparably larger scale than those of the present day. Ground water under-saturated with respect to calcium carbonate would have been generated by mixing at the water table – where infiltrating rain water met with ground water – as well as at the margins of the lens – where fresh ground water met with sea water. Hydrological conditions were optimum  for formation of caves.

Caves formation in the islands - high sea level
Figure 6h. Ground water conditions on Bermuda at a high sea level, such as today. Due to the small land area,  fresh ground water “lenses” are restricted in size and ground water circulation is at minimum. Under these circumstances there is limited opportunity for the development of caves.
Caves formation in the islands - lower sea level

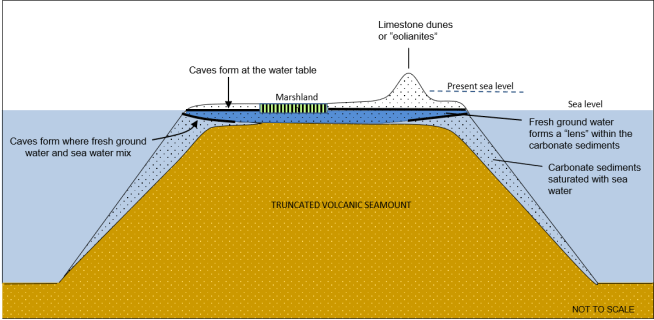

Figure 6i. Ground water conditions on Bermuda at a lower sea level than that of today.  Emergence of the entire platform creates a substantial catchment area for rain water and enables the development of a large fresh ground water body. Hydrological conditions are favourable for extensive cave formation.

The Bermuda cave formation debate

The “flank margin” model (MY2) of cave formation is applicable to many coastal and island cave systems. It is based on the principle that chemically aggressive ground water is generated  through the mixing of fresh and saline waters at the margin of a fresh water lens.  However the circumstances  by which dissolved limestone is transported to the sea on a sufficient scale to account for the creation of large caves remains the subject of debate, in  Bermuda’s case at least. Potential transportation pathways include: 1).  Submerged,  phreatic, passageways through which slow moving ground water carries dissolved  calcium carbonate; 2). Partially air-filled, vadose, conduits through which eroded limestone breakdown material is physically transported by streams; and 3). Submerged, phreatic,  passageways through which dissolved calcium carbonate is flushed, relatively rapidly, by strong tidal flows.

Bretz (BR1) first proposed that Bermuda caves, and limestone caves in general, “had their inception and largely their completion in continuously saturated rock below the water table”. He argued primary caves (as defined above) must have formed within  a substantial volume of horizontally flowing fresh ground water which could only have accumulated at lower sea levels than that of the present day.  Mylroie and Carew (MY2) similarly asserted, in their “flank margin” model, that some of the largest limestone caves which have formed within small  islands, or near a coast, are phreatic in origin (Scenario 1, above). They attributed such formation to the action of chemically aggressive ground water created by the mixing of waters from different sources. However, in Bermuda’s case, they argued that the primary caves were not the product of phreatic dissolution. Instead, they concurred with Mylroie (MY1) that vadose streams flowing along the limestone/basalt contact were responsible for tunneling large caves out of the limestone and for the physical transfer of eroded material and breakdown products to the sea (Scenario 2, above). Such large caves have never been proven to exist,  at the predicted depths, however.

Gines and Gines (GI2)  accepted that freshwater-seawater mixing causes under-saturation of ground water and dissolution of limestone, but questioned the process by which the dissolved material was flushed to the sea. They pointed out that Pleistocene glacio-eustatic sea level fluctuations and related rises and falls of chemically mixed waters in caves represent a major speleogenitic mechanism which is often overlooked. To account for the removal of the enormous amount of dissolved carbonate material that is required for the creation of cave systems they invoked the combined effect of these Pleistocene sea level changes and short-term tidal flushing. (Scenario 3, above).  Such flushing is the consequence of the twice-daily ebb and flow of large masses of ground water in coastal cave systems, driven by the pumping action of sea tides.

With respect to Bermuda, the conclusion drawn here is that when Pleistocene sea levels were positioned a  few tens of metres below their maximum position, primary cave creation by dissolution was at its peak within the emergent limestone cap (Figure 6i). These caves were the precursors to the secondary collapse structures which dominate today.

Deep caves and the survival of cave-adapted lifeforms

Returning to the hypothesis of cave formation at the limestone/basalt contact as proposed by Mylroie (MY1): it has been argued that the long-term survival of ancient cave-adapted aquatic crustaceans in Bermuda’s caves provides corroborative evidence.  It is asserted (IL1) that deep caves must exist at the base of the limestone cap, and even within the volcanic rock, in order for these species to have survived repeated lowering of sea level by more than 100 m (300+ ft) during the Pleistocene Epoch. The argument assumes that phreatic ground water completely drained away from the limestone cap at low sea levels, depriving cave-dwellers of an aquatic habitat in the cave systems as we know them today. However,  such an assumption is inconsistent with some basic hydrogeological principles.  A fall in sea level which exposed the entire Bermuda platform would create a catchment area of such an extent that even under lower rainfall conditions than today, there would have been substantial accumulation and retention of ground water within the sponge-like porous limestone cap, even when sea level dropped below the top of the volcanic rock (Figure 6j) .  Ironically, it is the absence not the presence of caves at the base of the limestone cap that would have increased the likelihood of ground water retention and presevation of aquatic life.

In summary, the existence of “deep” flooded cave refuges need not be invoked to account for  the survival of cave-dwelling  organisms during Pleistocene glacial periods. Rather, it can be attributed to the transformation of the limestone cap into a fresh water aquifer at these times. This hypothesis assumes that these creatures could migrate between high porosity zones, fractures and caves as water levels changed and were able to tolerate, or adapt to, slowly fluctuating salinities.

Caves formation in the islands - low sea level
Figure 6j. Groundwater conditions on Bermuda when sea level is below the top of the volcanic seamount. Infiltrating rain water accumulates as ground water within a limestone aquifer, whose base coincides with the top of the relatively impermeable volcanic rock. At equilibrium, the rate of ground water discharge along the flanks of the seamount equals the rate of rainwater input via infiltration.
